Wire / Strand sections

Project Image

Ø - x - l
Ø - l - k


Wir sind offen für individuelle Kundenwünsche

Project Image

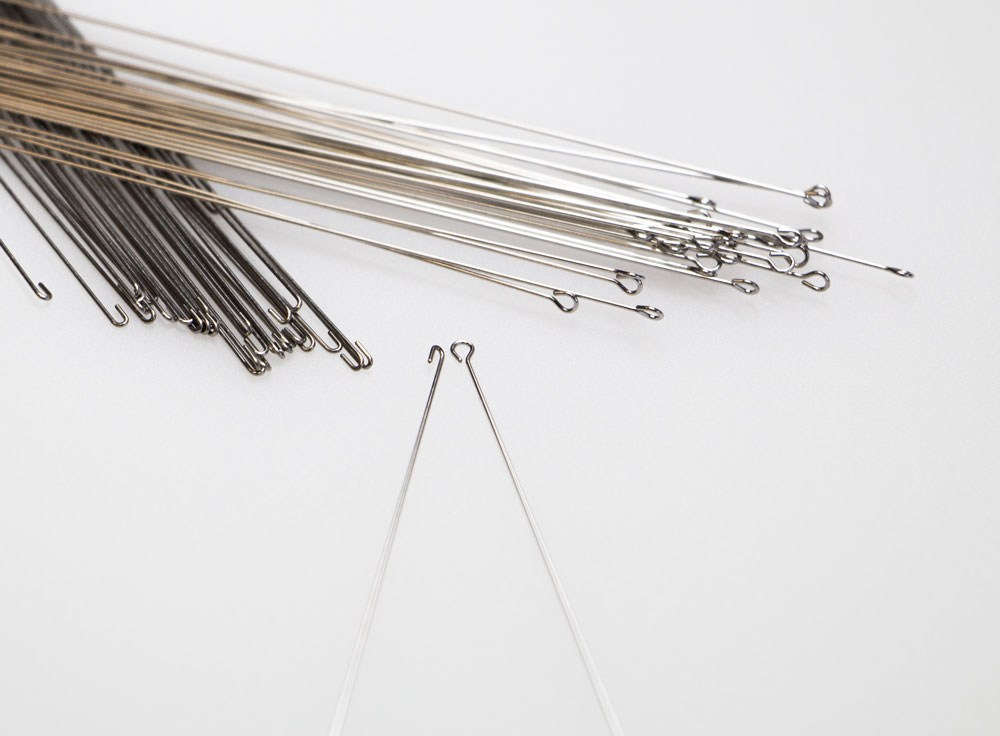

Sections of wire

Ø - nominal diameter in cm: standard 0.1 – 1.0 others on request
x - coatings
  U - uncoated
  P - PTFE
lengths - individuall on request up to 5.000 mm

Material:
        stainless steel 1.4310 or Nitinol
Bearbeitung:
        Individual
Verjüngung:
        Individual
Toleranzen:
        Jdepends on the length +/- 1 mm to +/- 3 mm

Strand / Sections of wire rope

Ø - nominal diameter in mm standard 0.09 to 2.0
l - lengths in mm: up to 500 mm
k - type of construction 1x 7.1 x 19.7 x 7 and 7 x 19

Material:
        stainless steel 1.4401 or 1.4310
End finish:
        rounded, balls,
        individually possible
Tolerances:
        depends on the length +/- 1 mm bis +/- 3 mm
